Thursday, 13 January 2011

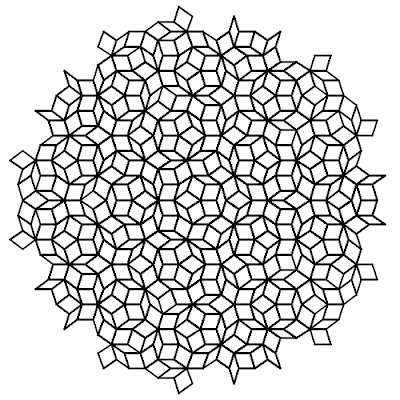

Penrose Tiling using lsystems and processing.py

Get processing.py here.

"""
penrose.py is a python script for use in processing.py.
It avoids switch, because python does not include it in the language, in my view this
is big mistake switch is very easy on the eye, I dislike chains of if/elif, however the
alternatives in python are either dodgy or equally ugly
"""

import math

# some globals
XPOS = 0
YPOS = 1
ANGLE = 2
DELTA = math.pi/5

RULES = {
'F' : '',
'W' : 'YBF2+ZRF4-XBF[-YBF4-WRF]2+',
'X' : '+YBF2-ZRF[3-WRF2-XBF]+',
'Y' : '-WRF2+XBF[3+YBF2+ZRF]-',
'Z' : '2-YBF4+WRF[+ZRF4+XBF]2-XBF'
}

AXIOM = '[X]2+[X]2+[X]2+[X]2+[X]'


def __produce(axiom, rules):
    """
    private single pass rule substitution
    """
    output = ""
    for i in axiom:
        output += rules.get(i, i)    # second i is returned when no dict key found
    return output


def repeat(rpx, axiom, rules):
    """
    Repeat rule substitution in a recursive fashion rpx times
    """
    production = axiom
    for i in range(0, rpx):
        production = __produce(production, rules)
    return production


def render(production):        # avoiding switch and globals
    """
    Render evaluates the production string and calls draw_line
    """
    turtle = [0, 0, -DELTA]
    stack = []
    repeat = 1
    for val in production:
        if val == "F":
            turtle = __drawLine(turtle, 20)
        elif val == "+":
            turtle[ANGLE] += DELTA * repeat
            repeat = 1
        elif val == "-":
            turtle[ANGLE] -= DELTA * repeat
            repeat = 1
        elif val == "[":
            temp = [turtle[XPOS], turtle[YPOS], turtle[ANGLE]]
            stack.append(temp)
        elif val == "]":
            turtle = stack.pop()
        elif ((val == '2') or (val == '3') or (val == '4')):
            repeat = int(val)
        else:
            pass


def __drawLine(turtle, length):
    """
    private line draw uses processing 'line' function to draw a line
    to a heading from the turtle with distance = length returns a new
    turtle corresponding to end of the new line
    """
    new_xpos = turtle[XPOS] + length * math.cos(turtle[ANGLE])
    new_ypos = turtle[YPOS] - length * math.sin(turtle[ANGLE])
    line(turtle[XPOS], turtle[YPOS], new_xpos, new_ypos)
    return [new_xpos, new_ypos, turtle[ANGLE]]


def setup():
    """
    The processing setup statement
    """
    size(500, 500)
    background(255)
    smooth()
    production = repeat(5, AXIOM, RULES)
    translate(width/2, height/2)
    strokeWeight(2)
    render(production)


def draw():
    """
    An empty processing draw statement seems to be required to prevent premature exit()?
    """
    pass
